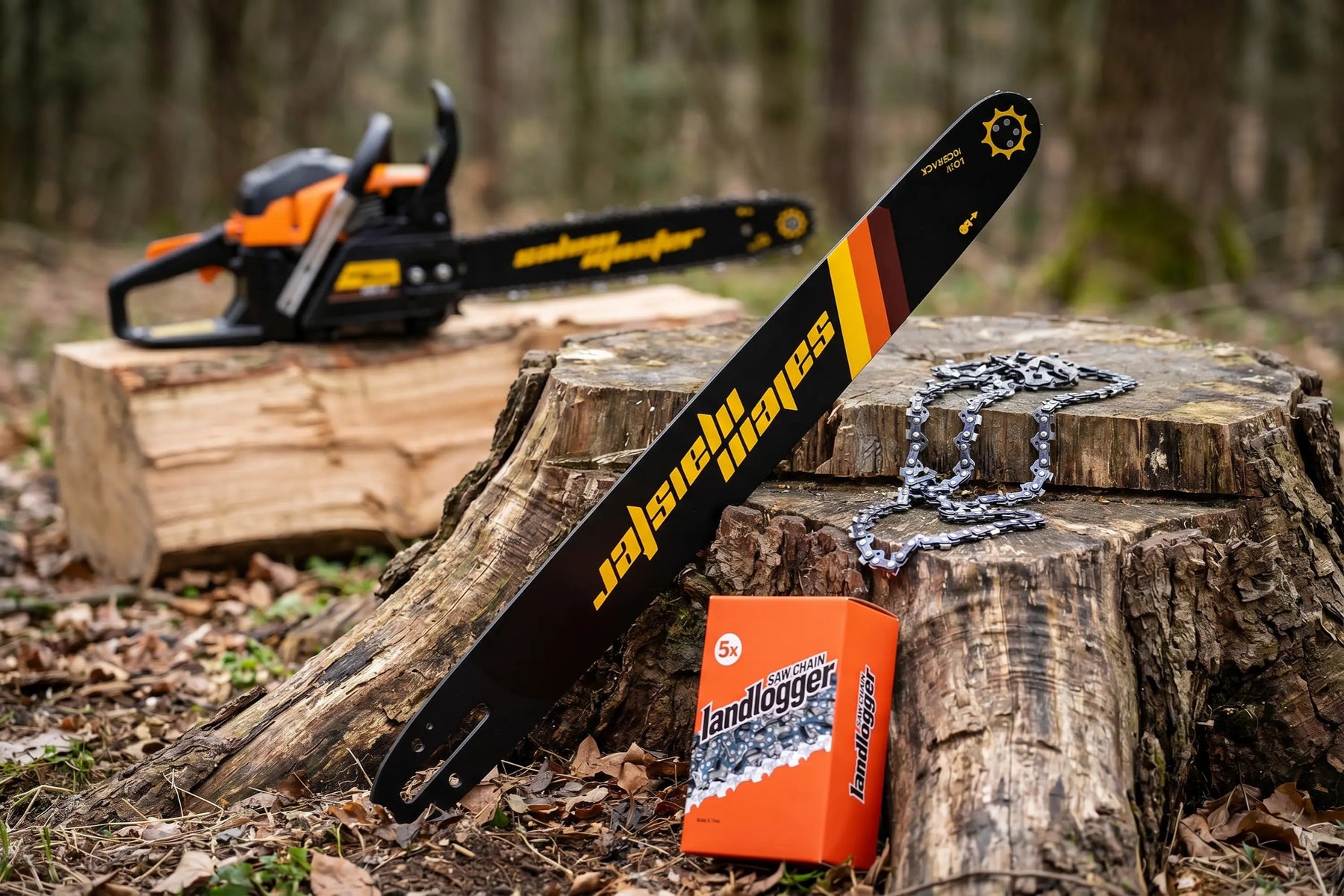

Bar & Chain Guide: How to Understand Chainsaw Bar and Chain Sizes

Choosing a replacement bar or chain can feel confusing at first.

You may see numbers like 16", 3/8" LP, .050", or 56DL, and it is not always obvious what they mean or how they work together.

This guide explains the key terms, how bar and chain sizing works, and what to check before choosing replacement parts.

Quick Answer

A matching bar and chain setup depends on these main details:

• Bar length
• Chain pitch
• Chain gauge
• Drive link count
• Bar mount / saw compatibility

A chain is not chosen by bar length alone. A correct match depends on the full specification set.

Why a Bar & Chain Guide Matters

Many buyers assume that if two bars are both 16 inches, they must use the same chain.

That is not always true. Understanding bar and chain sizing helps you:

• choose replacement parts more confidently
• avoid mismatched specifications
• understand product listings more quickly
• compare bars, chains, and combo kits more easily

The 5 Key Terms You Need to Know

1. Bar Length

Bar length is the usable cutting length of the guide bar, usually shown in inches such as:

• 12"
• 14"
• 16"
• 18"
• 20"

For replacement shopping, this is usually the starting point, but it is only one part of the fit.

2. Pitch

Pitch describes the size and spacing of the chain.

Common pitch sizes include:

• 1/4"
• 3/8" Low Profile
• .325"
• 3/8"
• .404"

Pitch must match the bar and the sprocket system.

3. Gauge

Gauge is the thickness of the chain’s drive link where it sits inside the guide bar groove.

Common gauge sizes include:

• .043"
• .050"
• .058"
• .063"

If the gauge does not match the bar groove, the chain will not be the correct fit.

4. Drive Links

Drive links are the lower parts of the chain that run inside the guide bar groove.

The number of drive links determines the chain loop length.

This is why two chains with the same pitch and gauge may still not be interchangeable if the drive link count is different.

5. Bar Mount Compatibility

Bar fit is also affected by the bar mount pattern and saw compatibility.

Even if two bars have the same length, pitch, and gauge, they may still fit different saw families.

How to Read a Typical Bar & Chain Spec

A product listing may look like this:

16" / 3/8" LP / .050" / 56DL

This means:

• 16" = bar length
• 3/8" LP = chain pitch
• .050" = chain gauge
• 56DL = 56 drive links

That full combination is what matters when comparing replacement chains or bar-and-chain combo kits.

Why Bar Length Alone Is Not Enough

Two products can both be listed as 16-inch, but still differ in:

• pitch
• gauge
• drive link count
• mount pattern

So when customers shop by bar length only, they often miss the rest of the compatibility picture.

Common Consumer Bar & Chain Size Patterns

For many homeowner saws, commonly seen chain families include:

• 3/8" Low Profile
• .043" gauge
• .050" gauge

For many mid-size and larger gas saws, common size families often include:

• .325" pitch
• 3/8" pitch
• .050", .058", or .063" gauge

Bar & Chain Combo vs Buying Separately

When shopping online, buyers often choose between:

• bar and chain combo kits
• replacement chains only
• replacement bars only

A combo kit can make matching easier because the bar and chain are already paired as a compatible set. Separate purchases offer more flexibility, but they require closer attention to the full specification combination.

What to Check Before Buying a Replacement Bar or Chain

Before choosing a replacement, confirm:

• bar length
• pitch
• gauge
• drive link count
• compatible saw model or bar mount

This is the easiest way to reduce ordering mistakes.

Common Terms You May See in Product Listings

• LP = Low Profile
• DL = Drive Links
• Full Chisel
• Semi Chisel
• Low Kickback

Not all of these describe size. Some describe cutter style or chain design category.

For example:

3/8" LP .050" 56DL Semi Chisel Chain

In that listing:

• 3/8" LP = pitch
• .050" = gauge
• 56DL = drive links
• Semi Chisel = cutter style

Which Bar & Chain Setup Is Right?

There is no single “best” bar and chain setup for every saw.

The right match depends on the saw’s original compatibility requirements and the exact specification set of the replacement part.

The safest general rule is to match the replacement by length + pitch + gauge + drive links + compatible model/mount information.

Final Thoughts

Once you understand the core terms — bar length, pitch, gauge, and drive links — product listings become much easier to read.

And once you add model or mount compatibility to that checklist, choosing a replacement becomes much more straightforward.

For most buyers, the goal is simple: match the full specification set, not just the bar length.

FAQ

What does a bar and chain guide help with?

It helps you understand bar length, pitch, gauge, drive links, and compatibility so you can compare replacement parts more accurately.

Is bar length enough to choose a replacement chain?

No. Fit depends on more than length alone, including pitch and gauge.

What does DL mean on a chain listing?

DL means drive links, which indicates the total number of drive links in the chain loop.

What is the difference between pitch and gauge?

Pitch describes the size and spacing of the chain, while gauge describes the thickness of the drive link where it fits into the guide bar groove.

Can two 16-inch bars use different chains?

Yes. They can differ in pitch, gauge, drive link count, and mount compatibility.

What are the most common gauge sizes?

Common consumer gauge sizes include .043", .050", .058", and .063".
